Terrain Macro Material Component
The Terrain Terrain Macro Material component provides a method of defining a macro-level appearance of a region of terrain.
Usage

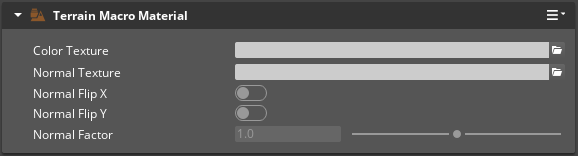

You assign a color and a normal texture by dragging texture assets to the Color Texture or Normal Texture fields, or by clicking
. Once the textures are assigned, you can adjust the appearance by using the Normal Flip X and Normal Flip Y toggles, and adjust the strength of the normals by using the Normal Factor slider. You can configure the dimensions of the region by adjusting the
Axis Aligned Box Shape
component.
Provider
Dependencies
Properties
| Property | Description | Values | Default |
|---|---|---|---|
| Color Texture | The image that will be rendered on the terrain. | Texture | None |
| Normal Texture | The texture that will be used as the normal map. | Texture | None |
| Normal Flip X | Set to true to flip the normals about X. | Boolean | False |
| Normal Flip Y | Set to true to flip the normals about Y. | Boolean | False |
| Normal Factor | Adjusts the strength of the normal values. | Float | 1.0 |
MacroMaterialData
This structure is used when sending out information about the macro material settings.
| Field | Description | Type |
|---|---|---|
| m_entityId | The EntityId of the owning entity. | AZ::EntityId |
| m_bounds | The bounds of the region that this macro-material component affects. | AZ::Aabb |
| m_colorImage | The image that should be applied to the terrain. | AZ::Data::Instance<AZ::RPI::Image> |
| m_normalImage | The normal map to be used in this region. | AZ::Data::Instance<AZ::RPI::Image> |
| m_normalFlipX | Whether or not the normal map should be flipped about the X axis. | bool |
| m_normalFlipY | Whether or not the normal map should be flipped about the Y axis. | bool |
| m_normalFactor | The strength of the normal map. | float |
TerrainMacroMaterialRequestBus
Use the following request functions with the TerrainMacroMaterialRequestBus EBus interface to communicate with Terrain Macro Material components of your game.
| Request Name | Description | Parameter | Return | Scriptable |
|---|---|---|---|---|
GetTerrainMacroMaterialData | Returns the MacroMaterialData structure assigned to the Terrain Macro Material component. | None | MacroMaterialData | Yes |
TerrainMacroMaterialNotificationBus
| Notification Name | Description | Parameter | Return | Scriptable |
|---|---|---|---|---|
OnTerrainMacroMaterialCreated | Notifies listeners when a new macro material has been created. | None | EntityId; MacroMaterialData | Yes |
OnTerrainMacroMaterialChanged | Notifies listeners when a macro material has been changed. | None | EntityId; MacroMaterialData | Yes |
OnTerrainMacroMaterialDestroyed | Notifies listeners when a Macro Material is removed. | None | EntityId | Yes |
OnTerrainMacroMaterialRegionChanged | Notifies listeners when the bounding area of the macro material changes. | None | EntityId; Old Region: Aabb; New Region: Aabb | Yes |
